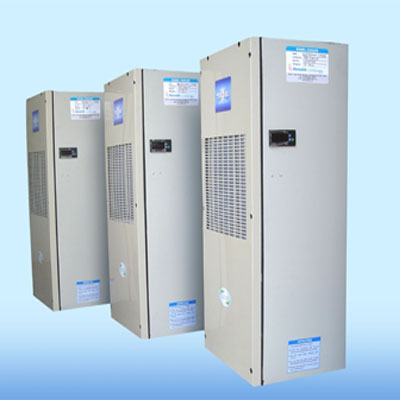

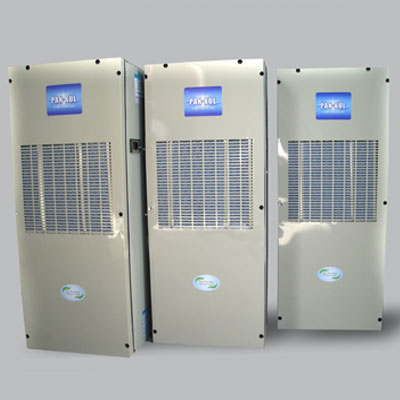

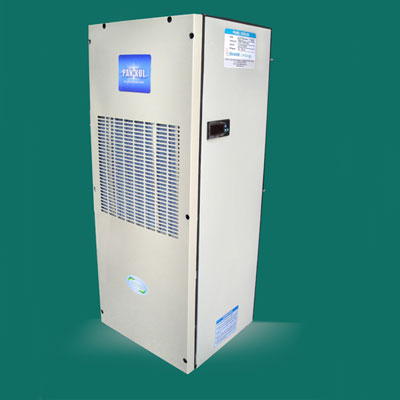

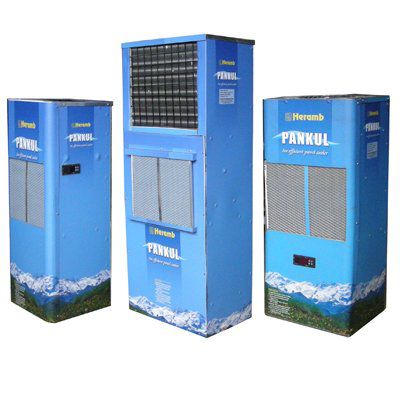

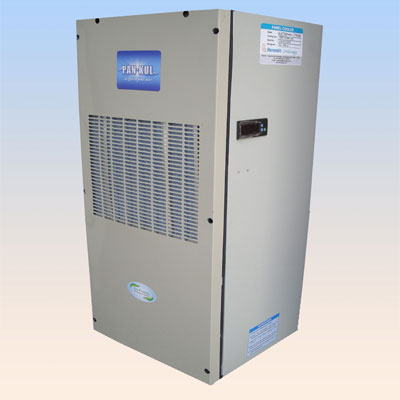

Panel Cooler

Herambh Coolingz is expertise in offering Panel Cooler that is available with vapour compressor refrigeration system. It is suitable for controlling humidity, temperature and cleanliness inside control panel of several machineries.

These coolers are especially manufactured as per the advanced technology and tools. Processed under the strict supervision of skilled professionals, we are able to meet our customer’s demands. These are available with sheet metal body, condenser & cooling coil, and temperature controllers that make  these coolers unparallel from others.

Owing to its excellent performance, easy operating system, low maintenance, and easy installation features, we have been considered as one of the reckoned Manufacturers, Exporters and WholesaleIndustrial Panel Coolers from Maharashtra, India.

Specifications of Panel Cooler

Capacity 350 Kcal/hr to 3000 Kcal/hr, Special Design on request
Type of Mounting Side, Top, Stand Alone

Operating  Condition

Wide range of Ambient Temp. 8oC to 42oC inside Temp. 24oC to 36 oC
Sheet Metal Body Light weight body made out of Aluminum sheet & Weather Proof Vinyl Skin With Scratch Proof Lamination
Condenser & Cooling Coil Made from imported high quality inner grooved copper tube
Temperature Controller Digital Temperature controller with High & Low Temperature Alarm



Note:

  • Blower is used (except 350kcal/hr) to circulate cool air for uniform cooling of panel.
  • These blowers with ball bearing, thermistor for winding protection are designed to work at continuous duty cycle.



Capacity (Kcal/Hr)     350 900 1200 2300
Compressor Emersion / Danfoss Emersion / Danfoss Emersion / Danfoss Emersion / Danfoss
Gas    R-134 a

R-134a R-22
R-407 c

R-134a R-22
R-407 c
R-134a R-22
R-407 c
Power Consumption (Compressor) 245 Watts     475 Watts 675 Watts 1000 Watts
  Cool Air Circulation Fan Fan / Blower Blower     Blower
Over all dimension in mm (H x W x D) 740 x 300 x 230 760 x 300 x 255 1020 x 405 x 280 1270 x 432 x 280



Note:

  • Due to continuous product innovation specification may change without prior notice.
  • Capacity based on conditions: Evaporating 7.2oC condensing temperature 54oC & ambient temperature 38oC.

Why One Should Install The Solution?

People mainly overlook the need of having a cooler for panels, which further welcome so many problems like overloading, short-circuit, etc. To calm the temperature down and to prevent any such condition, it is important to install the panel cooler. Being one of the most reputed Panel Cooler Manufacturers, we make sure that the need of our clients will get fulfilled from us.
