Panel Air Conditioner

Panel Air Conditioner

Herambh Coolingz is a top-notch company that is engaged in catering wide range of Panel Air Conditioner in fine quality. Panel Cooler with Vapour Compression Refrigeration Cycle is used to maintain the temperature and humidity of control panel of various machines. For utmost satisfaction of clients, we cater them our newly designed Drainless Panel according to their preferences.

Manufactured using high grade components and with the help of cutting-edge machinery, we are able to offer our industrial equipments with excellent features like optimum performance, low power consumption, low space, power efficiency, corrosion resistance, and much more.

Industrial Panel Air Conditioners is used to break up heat generated by AC/DC Drives, Electrical/Electronic components inside a control panel. They are widely used in several industries like pharmaceutical, food processing, engineering and much more.

Owing to its easy operation and optimum performance, these are easily available by us at the market leading prices. Accordingly, we are renowned as one of the prominent manufacturers, Exporters and Wholesale Electrical Panel Air Conditioner Suppliers from Aurangabad (Maharashtra), India.

Features Of Industrial Panel Air Conditioner:

  • The device is highly reliable and will perform its function beyond your expectations. Its high reliability is its main feature, which makes it the first choice of its users.
  • The panel air conditioner is very easy and safe to operate and even a non-tech person can handle it all alone.
  • Due to some of its advanced features, it consumes less power than the previous versions available in the market, which further cut down your electricity cost.
  • The high efficiency of the device make it a worth buying product that one should invest in.

Specifications of Panel Air Conditioner

  • Type of Mounting- Side, Top, Stand Alone
  • Operating Conditions-Wide range of Ambient Temp like 8 deg. C to 42 deg. C Inside Temp. 24 deg. C to 36 deg. C
  • Sheet Metal Body-It consists of light weight body that is made up of Aluminium sheet & weather proof vinyl skin with scratch proof lamination
  • Condenser & Cooling Coil-Manufactured from imported superior quality inner grooved copper tube
  • Temperature Controller-Digital Temperature controller with High & Low Temperature

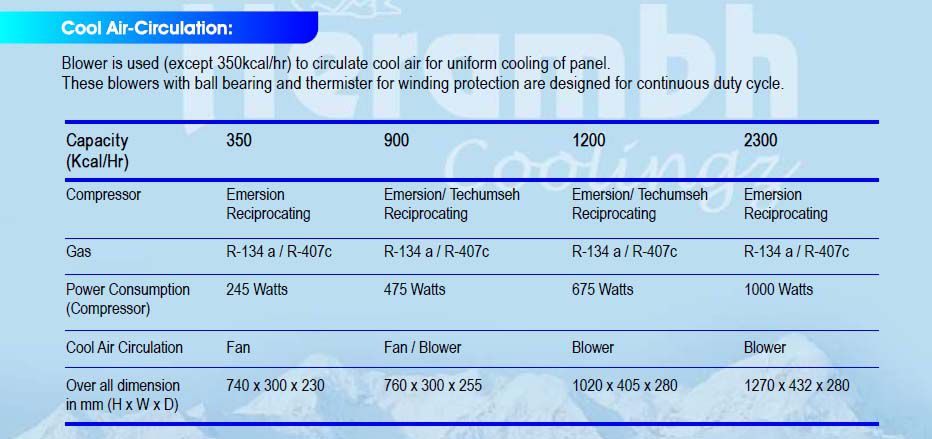

Technical Specification of Panel Air Conditioner

  • Owing to continuous product foundation specification may alter without earlier notice
  • Capacity based on conditions i.e. evaporating 7.2° C condensing temperature 54°C & ambient temperature 38° C



Capacity (Kcal/Hr)     350 900 1200 2300
Compressor Emersion / Danfoss Emersion / Danfoss Emersion / Danfoss Emersion / Danfoss
Gas    R-134 a

R-134a R-22
R-407 c

R-134a R-22
R-407 c
R-134a R-22
R-407 c
Power Consumption (Compressor) 245 Watts     475 Watts 675 Watts 1000 Watts
  Cool Air Circulation Fan Fan / Blower Blower     Blower
Over all dimension in mm (H x W x D) 740 x 300 x 230 760 x 300 x 255 1020 x 405 x 280 1270 x 432 x 280



Application Areas of Electrical Panel Air Conditioner

  • Pharmaceutical
  • Engineering
  • CNC & SPM manufacturers
  • Food Processing
  • Dairy
  • Domestic
